Description

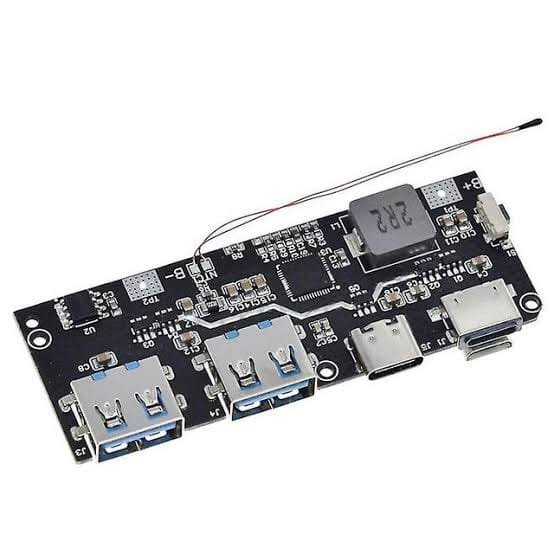

The QC4.0 / PD3.0 22.5W Fast Charging Module (frequently driven by the SW6206 or SW6208 main control chips) is a highly integrated, multi-protocol power management circuit board designed for building DIY power banks. It supports bidirectional quick charging, delivering up to 22.5W of power to rapidly charge compatible modern smartphones.

Switching Charge
High current up to 5A, high efficiency up to 95%
Supports 4.2V/4.35V/4.4V/4.5V battery types
Supports JEITA specification
Supports temperature loop control
Synchronous Boost
Output power up to 22.5W with 95% efficiency
Automatic load detection/light load detection
Support wireless charging mode
Support low current mode
Output fast charging protocol
Support PPS/PD3.0/PD2.0/QC4+/QC4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
Input Fast Charging Protocol
Support PD3.0/PD2.0/AFC/FCP/SCP/PE1.1
Type-C Interface
Built-in USB Type-C interface logic
Support Try.SRC function
BC1.2 Module
Support BC1.2 DCP mode
Support Apple/Samsung mode
